CD Errormonitor

Introduction.

The CD Errormonitor is used to collect error information from CD’s or CDR’s. The CD Errormonitor uses information from the PQ-subcodes contained in each CD. This information is combined with error correcting information from the ‘error corrector’ inside a CD player. Most Sony type processors can be used e.q. CXD2500BQ, CXD1125/30/35, CXD2515 and many more. The CD Errormonitor is internally connected to the CD Errorprocessor. An optical isolated RS232 connector is used for connecting the CD Errormonitor to a PC running a Windows (3.11 or 95) program (Mac users should use 'SoftWindows'). Status and error information is combined into a easy to read report and graph. Those reports will exactly show all information about a CD:

Tracklayout table including: Track, Index, Program time, Absolute time, Pre gap length, Track/Index length, emphasis status, ISRC, COPY status and program type (Audio or Data)
Disc information: UPC/EAN number, total playing time, number of tracks and time and date of analysis
Error top 5: the 5 most severe errors for BLER (‘BLock Error Rate’), BERL (‘Burst ERror Length), E32 (uncorrectable errors) and non valid samples. Each event will be reported with aboslute and program time (program time including track number)

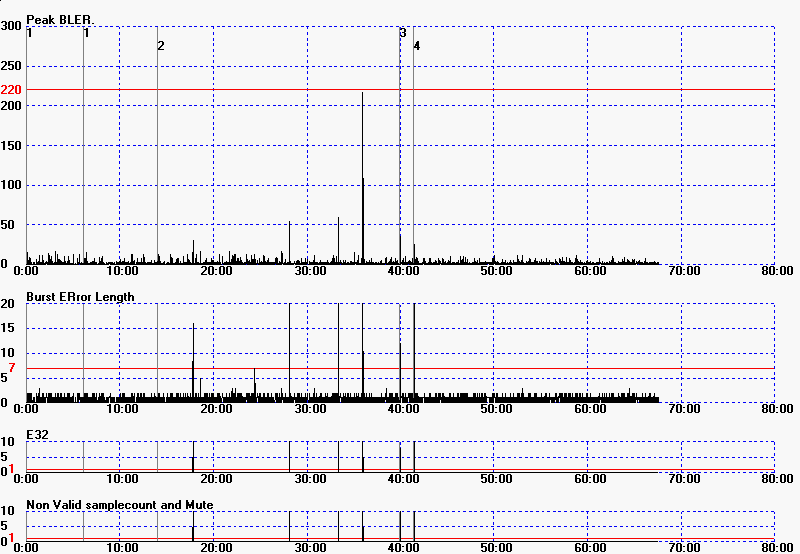

Graph showing errors: BLER, BERL, E32 and NV.It is also possible to indicate the start of a new track in the graphs.

Screenshot while performing analysis.

Tests can be made according to the ‘Red Book’ specification of a 10 second measuring period. It is also possible to use a 1 second measuring period. The electronics of the CD-Errormonitor are assembled on 2 printed circuit boards: an interface board and a processor board. Both boards are connected with a 24 pole ribboncable. The output is send to a PC for processing. To make sure that there will be no problems with ground loops, the RS232 interface is optically isolated. The CD Errormonitor can also remote control most type of CD player.

Interface board

The interface board buffers and pre-processes all information from the CD player. The error status from the error correction processor in the CD player is latched in a 3 or 6 bit latch (depends on the type of processor used). The CD Errormonitor processor will be interupted when the information is available so it can fetch the stored status and proces it. The PQ information from the subcode output is also stored in a FIFO type of latch. When the information is complete the 80 bits will be sended to the CD Errormonitor processor for processing. The remote control buffer is also mounted on the interface board. The interface board is connected to the CD electronics by means of 1 ribbon cable. All connections are made to the CD errorcorrecting processor. To facilitate the mounting of the wires to the chip a small adapterboard is used which will be mounted on top of the errorcorrecting processor.

Processor board

This board contains a microprocessor wich processes the errorinformation and PQ codes received from the interfaceboard. The result of this processing will be send through a RS232 interface to a PC which runs a Windows based program to produce all the reports. To prevent interference and groundloop problems the RS232 output is fully isolated up to 1500 Vrms.This processor can also send remote control commands to the CD player, which is used for controlling the CD player from the PC. The commands supported by this remote control depends on the type of CD player used.

CD Errormonitor printer output examples:

Choose one of these examples:

CDR with individual Index, ISRC and EAN and some errors or download this example as PDF file
Same CDR with summarized Index, ISRC and EAN and some errors or download this example as PDF file
Mixed mode CD with some dust particles or download this example as PDF file
CD without pregaps or download this example as PDF file
CDR with Digital Sum Value problem during pauses PDF file
CDR with Digital Sum Value problem during silence within a track PDF file
